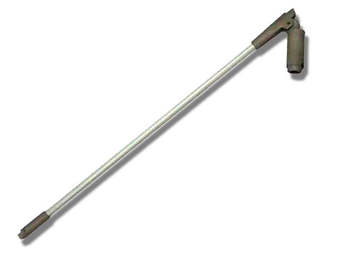

KHYAM Ridgi Dome 1st Fibreglass Pole Section with Manual Joint

A replacement Ridgi Dome first pole which fits into the central hub, comes with the top joint molded onto the fibreglass pole for an easy replacement. This is available in different sizes depending on which model you have. All models are listed below so you can check which pole you require:

• Khyam 92cm Fibreglass 1st Pole (Attaches to 19mm Alloy Pole)

1. Screenhub
2. Motordome Dub Hub
3. Motordome RV Hub
4. Motordome Classic
5. Motordome Sleeper
6. Motordome Excelsior 780
7. Motordome Sleeper Plus 780
8. Ridgidome Classic/Excelsior XL and XXL
9. Chatsworth Chatsworth Plus
10. Harewood Harewood Plus
11. Hatfield
12. Balmoral
13. Screenhouse

• Khyam 76cm Fibreglass 1st Pole (Attaches to 16mm Alloy Pole)

1. Motordome Tourer

• Khyam 104cm Fibreglass 1st Pole (Attaches to 19mm Alloy Pole)

1. Dub Hub XL
2. Classic 380
3. Sleeper 380
4. Hexadome

Replacing the First Pole

1. To remove the pole, you will need to disconnect the pole from the aluminum second pole.

2. Remove the lid from the bottom of the hub and support and protect the rest of the tent by placing something like a large roll of packing tape under the hub.

3. Stand the first pole horizontal and tap it sharply with a mallet to knock the pole out of the hub, when the pole releases twist and remove it.

4. Place the new pole in position and pull it over to a vertical position keeping the hub flat and the new pole should click into position automatically.
